Comet P40 Plumbing Kit (Batch Mixing)

The Comet P40 Plumbing Kit for batch mixing includes the core plumbing parts needed to connect your Comet P40 pump to a batch mix system. All components are sized to work together, making it easier to build a clean and organized setup without sourcing parts one by one.

This kit uses a mix of stainless steel and poly fittings that hold up well in soft wash environments. With the included hoses, clamps, uniseals, check valve, and filter, it provides a straightforward plumbing solution for batch mixing applications using the Comet P40 pump.

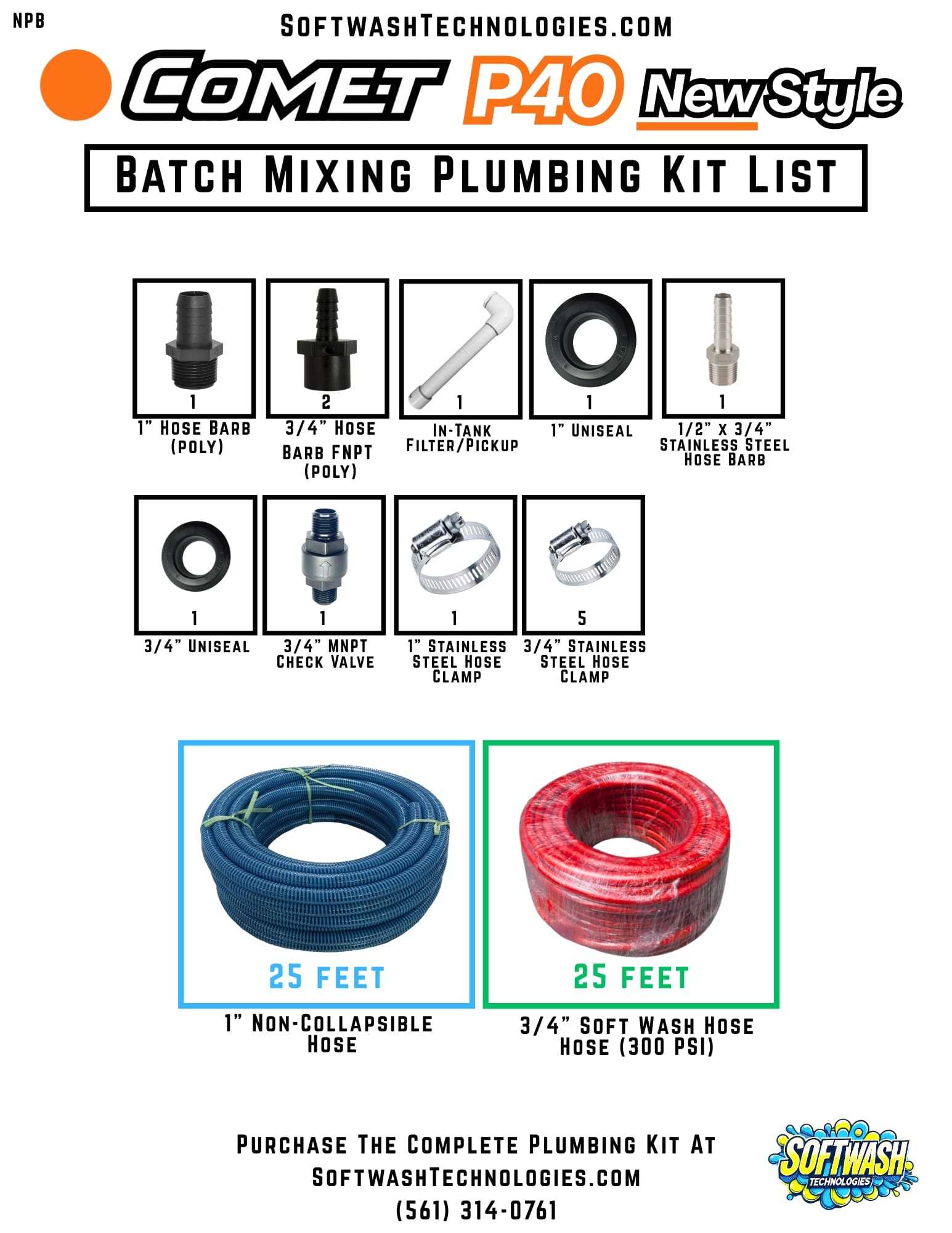

WHAT’S INCLUDED:

• 1 × 1″ Hose Barb (Poly)
• 2 × 3/4″ Hose Barb FNPT (Poly)
• 1 × In-Tank Filter / Pickup
• 1 × 1″ Uniseal
• 1 × 1/2″ × 3/4″ Stainless Steel Hose Barb
• 1 × 3/4″ Uniseal
• 1 × 3/4″ FNPT Check Valve
• 1 × 1″ Stainless Steel Hose Clamp
• 5 × 3/4″ Stainless Steel Hose Clamp
• 25 ft × 1″ Non-Collapsible Hose
• 25 ft × 3/4″ Soft Wash Hose (300 PSI)

KEY FEATURES:

• Built for batch mixing setups. The included hoses and fittings are selected for simple batch mix plumbing with the Comet P40 pump.
• Chemical-resistant materials. Poly fittings and stainless steel clamps are suited for soft wash chemicals and regular use.
• Matched components. All parts are sized to work together for a cleaner install and fewer connection issues.
• Includes filtration and check valve. Helps protect the pump and maintain proper flow direction in the system.
• Time-saving install: With everything ready to go, you’ll spend less time figuring out plumbing and more time on the job.

Why do you need an Comet P40 Plumbing Kit?

Batch mixing systems work best when the plumbing is simple and reliable. This kit gives you the essential parts in one package so you can build or refresh a Comet P40 batch mix setup without tracking down individual fittings. Everything included is straightforward, compatible, and ready to install so you can focus on getting your system running smoothly.
