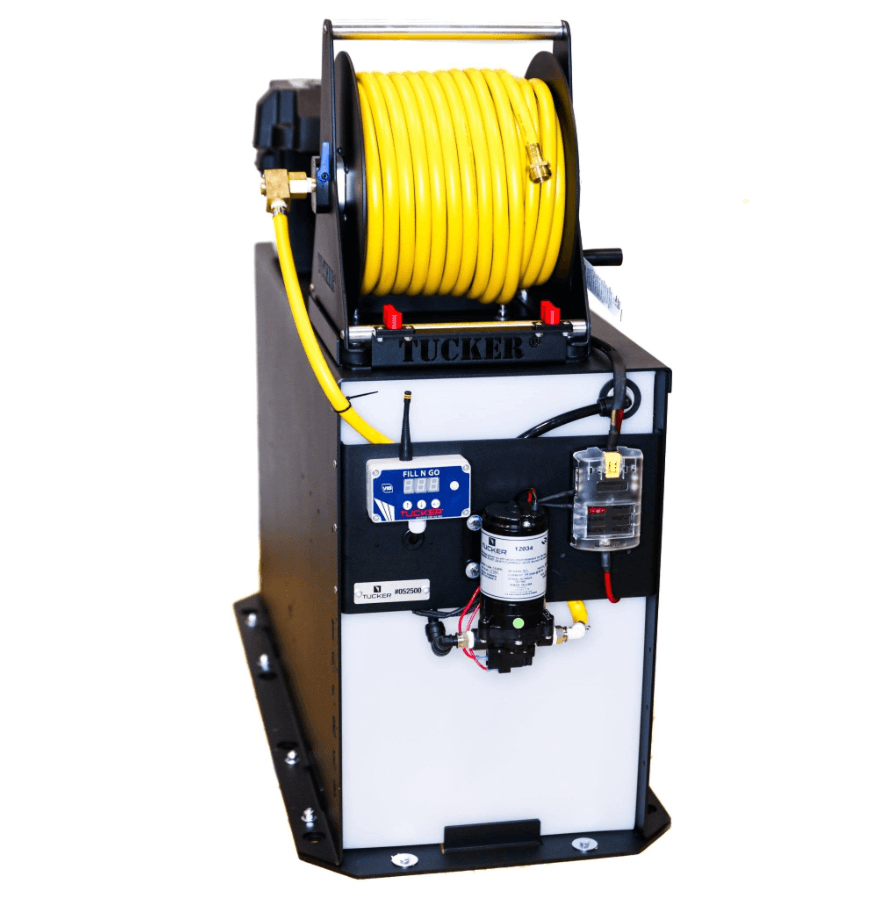

The 50 gallon delivery system brings your own spot-free water to the job. It holds 50 gallons of purified water and pushes it through a 12V pump, a digital flow controller, and 150 feet of hose, up your water-fed pole.
Key Features
-
50-gallon onboard tank: Carry a full load of pre-purified water so you aren't tied to the site's spigot or its water quality.
-
12V delivery pump: A self-priming diaphragm pump moves 1.4 GPM at about 90 PSI and pushes water three to four stories.
-
Digital flow controller and remote fob: Start, stop, and dial flow up or down from the pole to stretch the day's water. Tucker warns that running the pump without the controller can burn it out.
-
150 feet of 3/8" hose on a premium reel: Reach across a parking lot without moving the van.
-
Powder-coated aluminum frame: Corrosion-resistant and light enough to mount in a van, truck bed, or trailer.
Specifications
| Tank capacity |
50 gallon |
| Pump |
12V diaphragm delivery pump (Aquatec DDP-5800 platform), self-priming |
| Flow rate |
1.4 GPM |
| Pump pressure |
About 90 PSI bypass |
| Vertical reach |
3 to 4 stories |
| Hose |
150' of 3/8" ID spot-free hose on a premium reel |
| Controller |
Digital flow controller with wireless remote fob |
| Onboard filtration |
None (fill from a separate RO/DI source) |
| Frame |
Powder-coated aluminum |
| Dimensions |
26" x 39" x 48" |
| Power |
Deep-cycle 12V marine battery, Group 24, 500+ cranking amps (not included) |
| Shipping weight |
About 326 lb, ships fully crated |
| Country of origin |
Assembled in USA |
| SKU |
T-50-DEL-SU (Single User) |
What's Included
- 50-gallon tank on a powder-coated aluminum frame
- One 12V delivery pump
- One digital flow controller with wireless remote
- 150' of 3/8" spot-free hose on a premium Tucker reel
This is the Single User setup: one pump, one reel, one controller. The Dual User version runs two of each for two operators at once. It doesn't include a battery or charger, so you supply a deep-cycle Group 24 marine battery (500+ cranking amps) and a 2-amp trickle charger. There's no filtration onboard. You fill the tank from your RO/DI unit or DI tank. This is a pure-water window and solar system, not a soft wash sprayer. The 1.4 GPM pump won't move enough flow for SH, and you shouldn't run bleach through it. Don't let it freeze. Drain it when the temperature drops.
How It Works
- Make spot-free water upstream with your RO/DI unit or DI tank, then fill the 50-gallon tank.
- The 12V pump siphons from the tank and pressurizes the water, drawing off a deep-cycle marine battery.
- Water runs out through 150 feet of hose, up the water-fed pole, and through the brush jets for a spot-free rinse that dries clear with no squeegee.
- Work the flow controller and remote from the pole to start, stop, and adjust flow so you don't waste the day's water.
Pairs Well With
Frequently Asked Questions
Does the 50 gallon delivery system include a battery?
No. You supply a deep-cycle Group 24 marine battery with at least 500 cranking amps, plus a 2-amp trickle charger. The pump is 12V and runs off that battery.
Does it purify water, or do I fill it with pure water?
You fill it. There's no RO/DI onboard. Make spot-free water with a separate purification unit, then fill the tank. That's the difference between this Delivery system and the PRO models that have filtration built on.
Can I run soft wash chemicals through it?
No. It's a pure-water system for window and solar cleaning. The 1.4 GPM pump won't supply soft wash flow, and SH would attack the pump and fittings.
