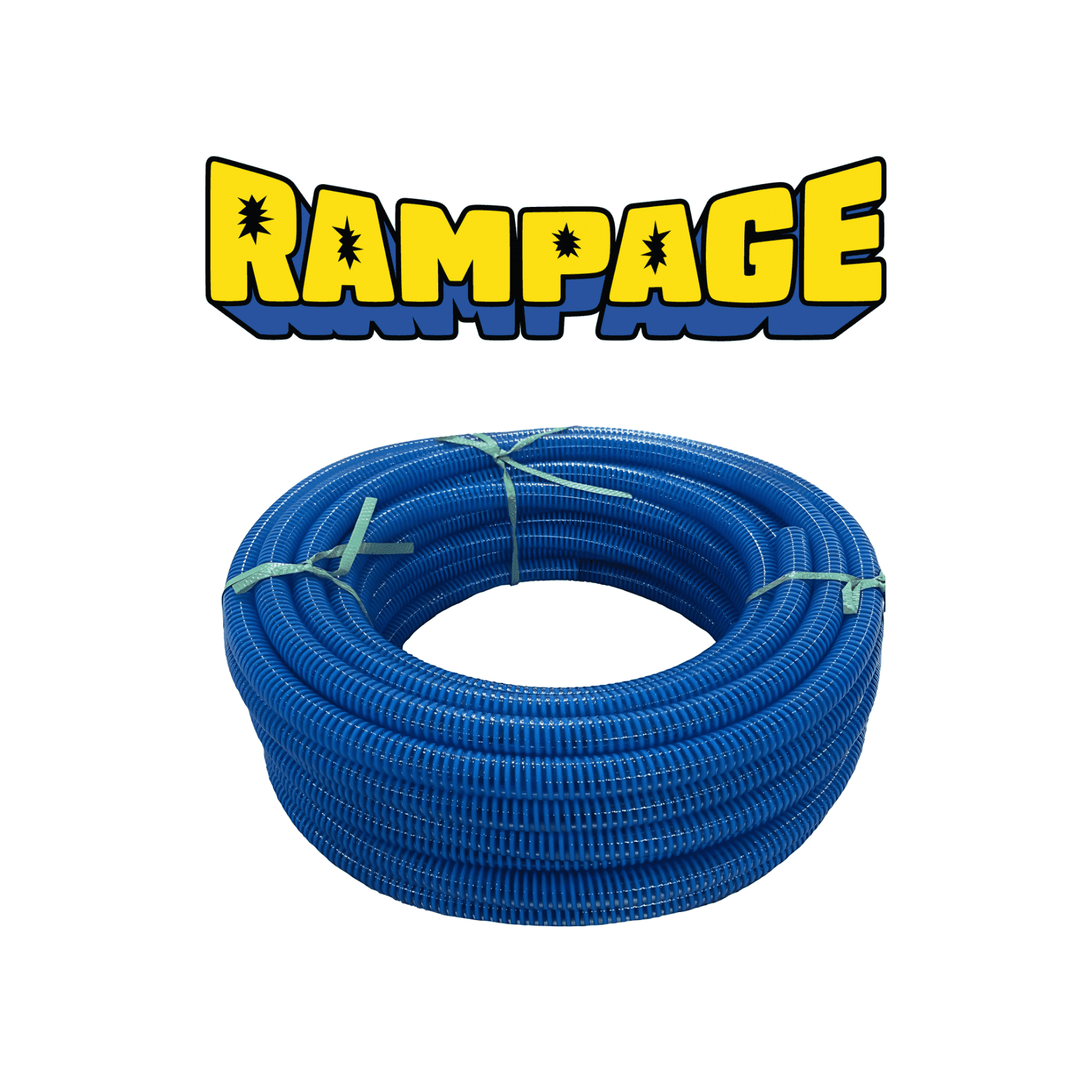

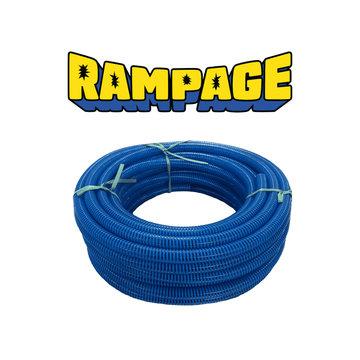

The Crushproof Suction Hose is a blue PVC suction line that feeds soap or SH mix from your tank to the pump inlet without collapsing. A rigid PVC helix holds the bore open under vacuum. It's the Rampage Arctic Blue hose, sold by the foot in ¾", 1", and 1¼".
Key Features
-

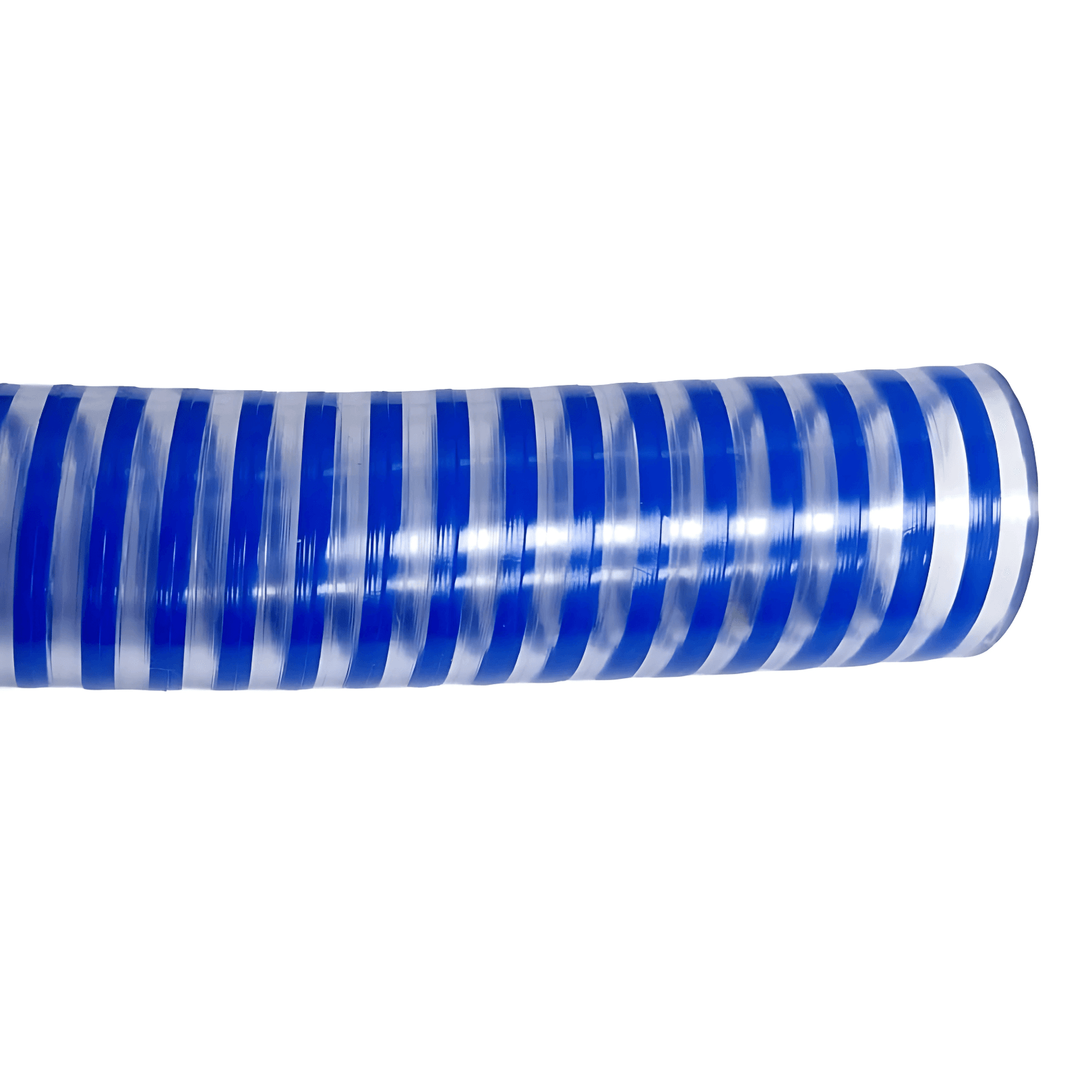

Rigid PVC helix: Holds the bore open under suction, so the hose won't collapse and starve the pump.
-
Clear blue body: See the flow and catch air pockets or blockages before they cavitate the pump.
-
SH-safe PVC: The food-grade, non-phthalate PVC handles sodium hypochlorite and other harsh chemicals.
-
Flexible to -40°F: The Arctic Blue compound stays workable in the cold, so it won't crack on a winter trailer rig.
-
Sold by the foot: Buy the exact run your build needs in ¾", 1", or 1¼".
Specifications
| Brand |
Rampage Arctic Blue (American Pressure Equipment) |
| Material |
Food-grade, non-phthalate blue PVC with a rigid PVC spiral helix |
| Inner diameter |
¾", 1", or 1¼" |
| Working type |
Suction / low-pressure transfer (not high-pressure discharge) |
| Chemical compatibility |
Sodium hypochlorite, surfactants |
| Temperature range |
-40°F to 150°F |
| How sold |
By the foot, bare hose, no fittings |
What's Included
- Bare hose cut to the length you order, in ¾", 1", or 1¼"
- No fittings or clamps. Add your own.
Runs from your tank to the pump inlet on soft wash and pressure wash rigs. Size the hose to about twice the pump's inlet port, so a ½" inlet takes a 1" hose. Warm the end with a heat gun, push on a barb or camlock sized to the ID, and double-clamp it. Keep the fittings poly or stainless on an SH rig. Brass and galvanized corrode and flake into the pump.
How It Works
On a soft wash rig this is the supply line from the tank to the pump inlet. When the pump runs, it pulls a vacuum on the inlet side. A plain vinyl hose sucks flat under that vacuum and starves the pump. The rigid helix in this hose holds the bore round, so the pump gets a steady feed and won't cavitate.
It carries liquid toward the pump, not away from it, so it isn't pressure-rated for the discharge side. For the machine-to-gun line, run a wire-reinforced high-pressure hose instead.
Pairs Well With
Frequently Asked Questions
Is the crushproof suction hose safe for SH?
Yes. The food-grade PVC is rated for sodium hypochlorite at normal mixing strengths. The catch is the fittings, not the hose. Keep barbs, camlocks, and valves poly or stainless. Brass and galvanized corrode under SH and flake debris into your pump.
Will this hose collapse under suction?
No. The rigid PVC helix is the point. It holds the bore open under the vacuum the pump pulls on the inlet, so flow stays steady where a plain vinyl line would suck flat.
Can I use it as my high-pressure hose?
No. It's a suction and low-pressure transfer line only. For the high-pressure side from the machine to the gun, use a wire-reinforced pressure hose.
