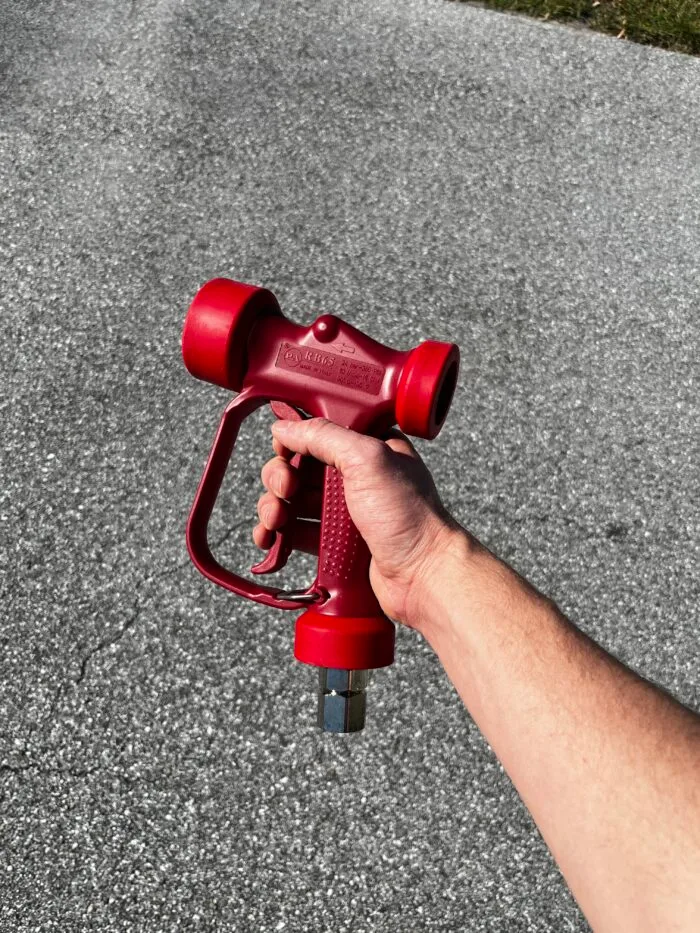

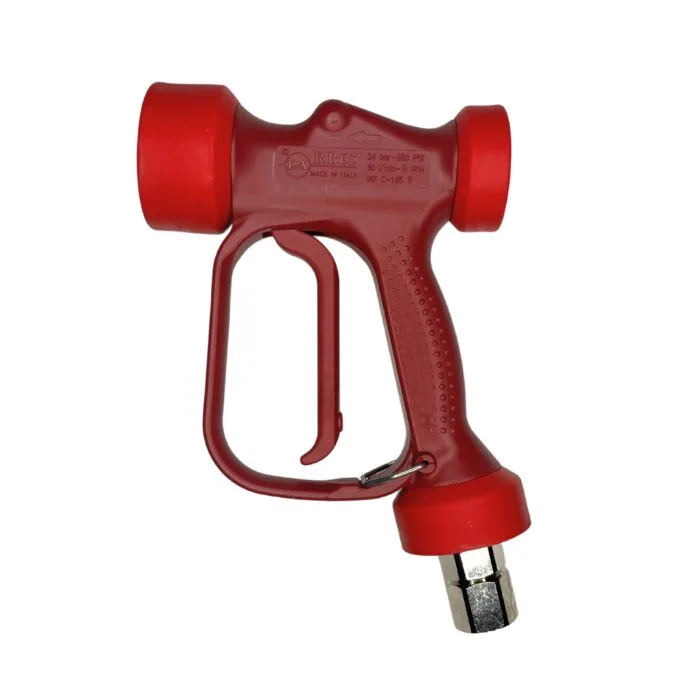

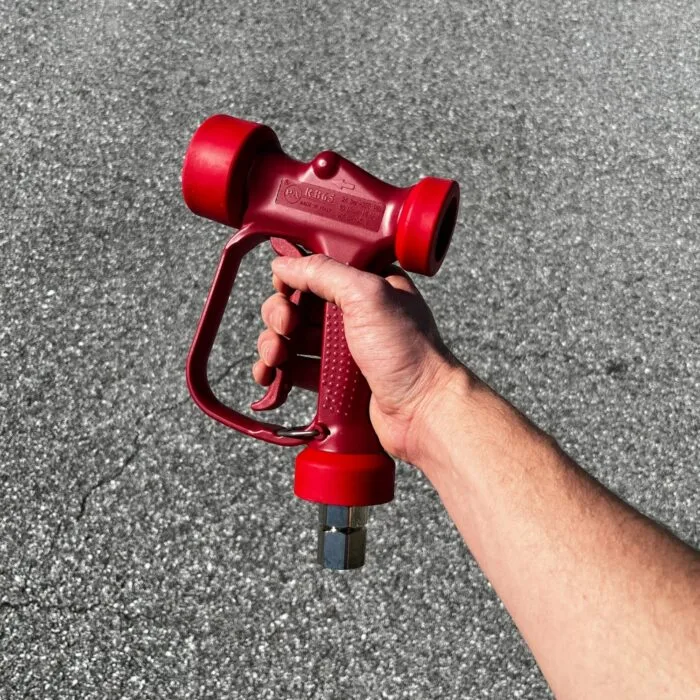

The High Flow Soft Wash Gun passes up to 16 GPM without choking your pump. That's what separates it from garden-style guns and small ball valves. It's the General Pump YG1635SR, with a built-in stainless swivel inlet and an adjustable 0 to 60 degree cone.
Key Features
-
Passes up to 16 GPM: High flow with low restriction, so it moves your system's full output without bogging the pump. That's its job.
-
Built-in stainless swivel inlet: Cuts hose kinking and wrist fatigue on long jobs.
-
AISI 303 stainless piston, pin, and swivel: More chlorine-resistant than the brass-piston wash-down guns, with Viton seals to handle the chemical.
-
Adjustable cone nozzle: Dial from a 0 degree pencil jet to a 60 degree wide cone off the trigger. No separate tips needed to start.
-
Shockproof sealed housing: Plastic semi-housings with three rubber rings take the drops that come with rig work.
Specifications
| Model |
General Pump YG1635SR (P.A. RB65) |
| Max flow |
Up to 16 GPM (usable from about 5 GPM) |
| Max pressure |
350 PSI (low-pressure, soft wash only) |
| Max temperature |
195°F rated, 140°F for continuous use |
| Wetted parts |
AISI 303 stainless piston, pin, and swivel; Viton seals |
| Inlet |
1/2" BSP-F swivel |
| Nozzle |
Integral adjustable cone, 0 to 60 degrees |
| Weight |
About 2.3 lb |
| Origin |
Made in Italy |
What's Included
- One High Flow Soft Wash Gun with integral adjustable cone nozzle and built-in 1/2" swivel inlet
No lance, extension wand, separate tips, or adapters. It's matched to gas diaphragm pumps and 1" AODD pumps that can feed its flow. The inlet is 1/2" BSP-F, so connect a 5/8" or 1/2" soft wash hose with the right fitting, and thread a 1/2" MPT lance to the outlet if you want more reach. If you're adapting from NPT, confirm the adapter, because BSP and NPT don't seal cleanly together. It isn't a pressure-washer gun. The body maxes at 350 PSI, nowhere near the 3000 to 4000 PSI a pressure washer puts out, so keep it off the machine. It's also more gun than a single low-flow 12V pump needs. If you're running around 5.5 GPM, a lighter ball-valve gun handles it better.
How It Works
The trigger is your on/off at the end of the soft wash hose. Squeeze it and the stainless piston lifts off its seat, letting solution flow through to the adjustable cone. The screw and trigger travel set the pattern from a tight pencil jet to a wide cone. For soft washing, the gun has to pass high flow without restriction so it doesn't choke the pump, and it has to take the chemical. This one passes the flow and upgrades the wetted parts to stainless and Viton.
SH is hard on any gun. Flush this one out with clean water after every use, and rebuild the piston and seals with a repair kit when they wear. That's the routine that keeps it working.
Pairs Well With
Frequently Asked Questions
How many GPM does the High Flow Soft Wash Gun flow?
Up to 16 GPM, usable from about 5 GPM. That high-flow, low-restriction body is the point. It passes your system's full output without choking the pump. Max pressure is 350 PSI.
Can I use this gun on a pressure washer?
No. The body maxes at 350 PSI. A pressure washer runs 3000 to 4000 PSI and would blow it apart. This is a soft wash and washdown gun only.
Will it hold up to SH?
The red YG1635SR upgrades the piston, pin, and swivel to stainless and uses Viton seals, so it resists chlorine better than a brass-piston gun. SH is still hard on any gun, so flush it out with clean water after every use and rebuild the wear parts when they go.
