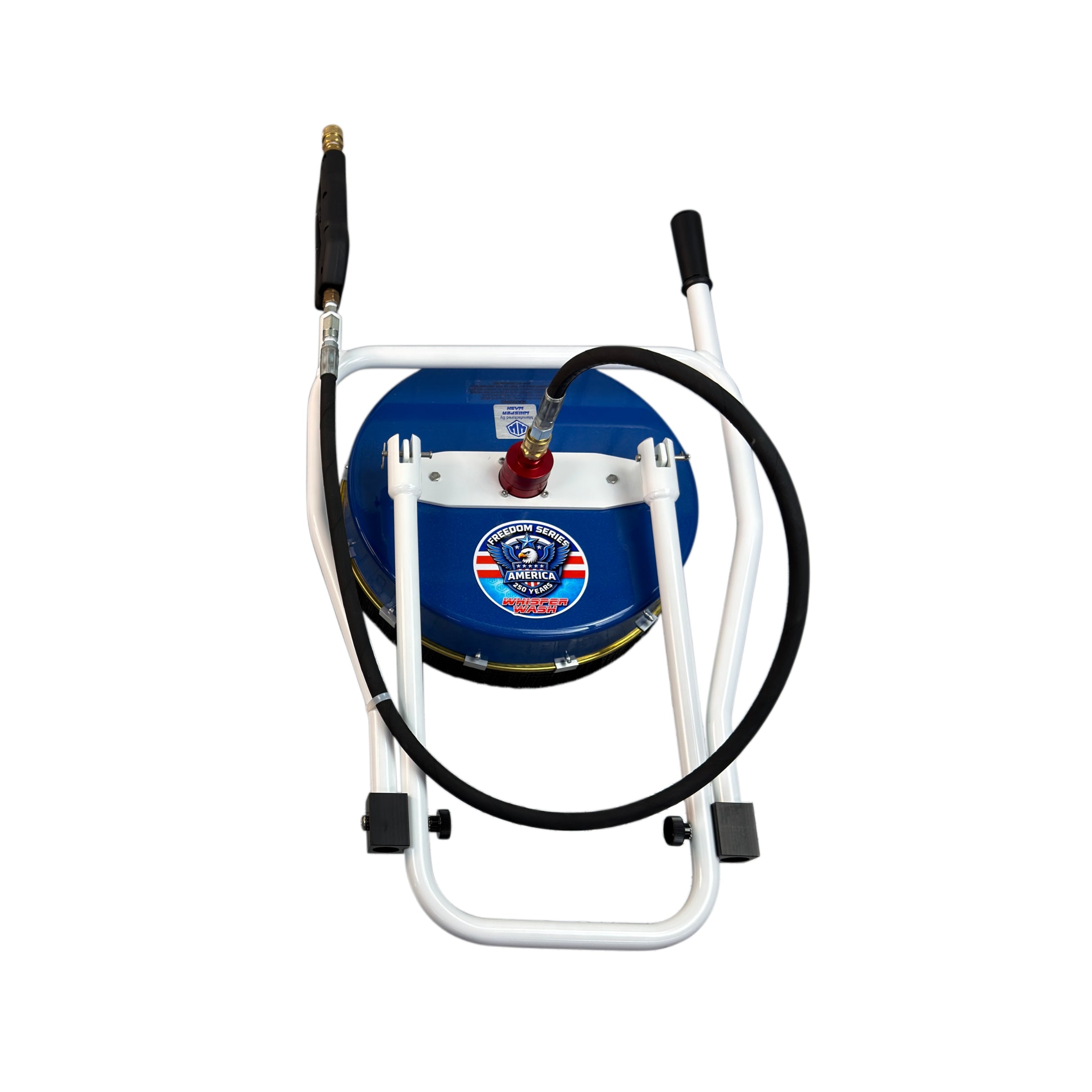

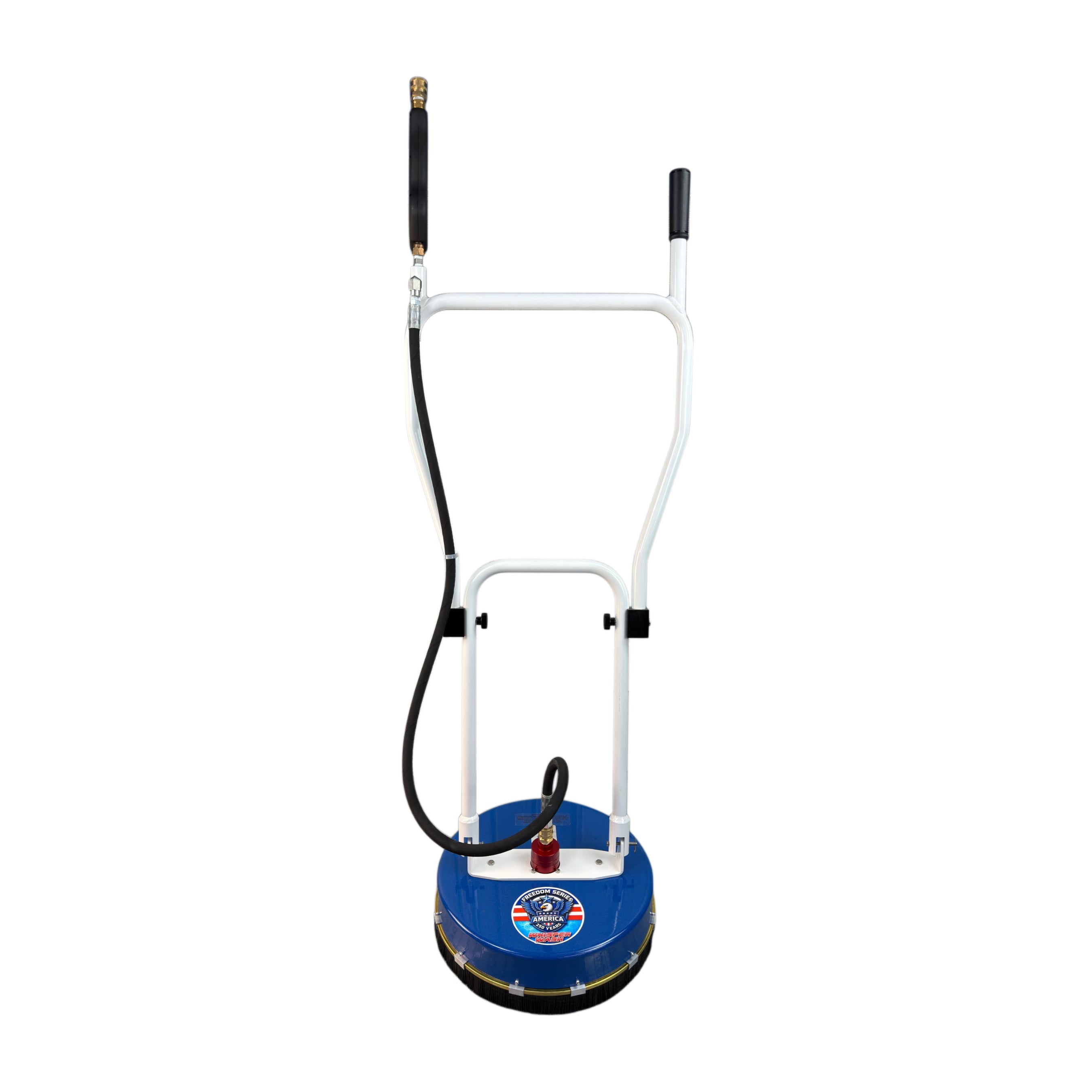

The Whisper Wash Freedom 16" Surface Cleaner is a 16-inch aluminum surface cleaner built for pressure washers running 3 to 6 GPM. Whisper Wash's new 46 Series swivel holds full rotation down at the low end of that range, where heavier cleaners bog down, so your flatwork comes out even instead of striped. It's the surface cleaner for the rig most guys start on.
Key Features
-
Built for 3 to 6 GPM: Sized for the smaller machines most operators run when they're getting going, not the 8 GPM commercial rigs.
-
46 Series High-Efficiency Swivel: Tuned to keep spinning at lower flow, so you get clean rotation where bigger swivels stall out.
-
Quick cartridge replacement: When the swivel wears, drop in a new cartridge instead of buying a whole new head. Less downtime, less cost.
-
Legacy 2-tip spray bar: Balanced and machined for steady rotation and even passes across the full 16".
-
Heavy-duty nylon brush skirt: Keeps the spray on the floor, not on the walls or your boots.
-
Flip-n-Fold aluminum handle: Powder-coated aluminum handle folds flat for transport and storage on a packed trailer. The whole unit runs 17 lbs.
Specifications
| Cleaning width |
16" |
| Recommended flow range |
3.0–6.0 GPM |
| Operating pressure |
1,500–4,000 PSI |
| Cover |
Powder-coated aluminum, blue metallic |
| Handle |
Aluminum, Flip-n-Fold |
| Swivel |
46 Series High-Efficiency, single double-thrust bearing, rebuildable cartridge |
| Spray bar |
Legacy, balanced and machined, 2-tip |
| Brush |
Heavy-duty nylon skirt |
| Water inlet |
Quick connect |
| Water temperature |
Hot or cold, max 185°F (85°C) |
| Max RPM |
2,500 |
| Operating weight |
17 lbs |
| Dimensions |
63" L x 20" W x 8" H |
| Country of origin |
USA |
| Warranty |
6 months |
What's Included
- Freedom 16" Surface Cleaner with Flip-n-Fold handle, 46 Series swivel, Legacy 2-tip bar, and nylon brush skirt
- Quick-connect inlet
Runs on 3 to 6 GPM and 1,500 to 4,000 PSI. It needs at least 3 GPM to spin right and tops out at 6. If you're running an 8 GPM machine, this isn't your cleaner. Size up so you're not pushing more flow than the head is rated for.
How It Works
Water comes in through the quick-connect inlet and drives the Legacy spray bar. The two tips spin under the cover and lay even pressure across the full 16" path, so you get a clean sweep instead of zebra stripes. The single double-thrust bearing keeps that rotation smooth job after job.
Walk a steady pace and overlap your passes. If you start seeing stripes, slow down. Keep the tips clean so the bar stays balanced. When the swivel finally wears, swap the cartridge and keep running.
Pairs Well With
Frequently Asked Questions
What GPM do I need for the Freedom 16 surface cleaner?
Run it on 3 to 6 GPM. The 46 Series swivel is built to hold rotation down at the low end, so it works on the smaller machines most operators start with. Below 3 GPM it won't spin right. Above 6 GPM you're past what the head is rated for.
Can you run the Freedom 16 with hot water?
Yes. It runs hot or cold, up to 185°F. Trigger-gun controlled, so you start and stop the spray from the gun like any surface cleaner.
Is the Freedom 16 surface cleaner made in the USA?
Yes. Whisper Wash designs and manufactures the Freedom Series in the USA.
